Process Equipments

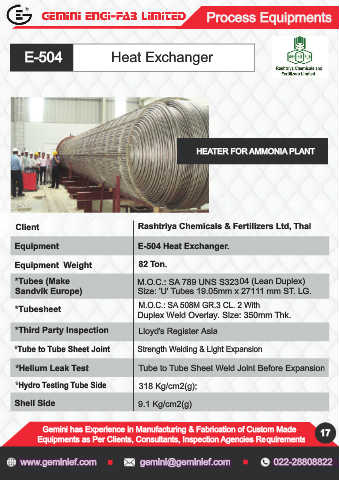

E-504 Heat Exchanger
HEATER FOR AMMONIA PLANT
Client Rashtriya Chemicals & Fertilizers Ltd, Thal
Equipment E-504 Heat Exchanger.
Equipment Weight 82 Ton.
*Tubes (Make M.O.C.: SA 789 UNS S32304 (Lean Duplex)
Sandvik Europe) Size: 'U' Tubes 19.05mm x 27111 mm ST. LG.
M.O.C.: SA 508M GR.3 CL. 2 With
*Tubesheet
Duplex Weld Overlay. Size: 350mm Thk.
*Third Party Inspection Lloyd's Register Asia
*Tube to Tube Sheet Joint Strength Welding & Light Expansion
*Helium Leak Test Tube to Tube Sheet Weld Joint Before Expansion
*Hydro Testing Tube Side 318 Kg/cm2(g);
Shell Side 9.1 Kg/cm2(g)
Gemini has Experience in Manufacturing & Fabrication of Custom Made
17
Equipments as Per Clients, Consultants, Inspection Agencies Requirements
